Consistent Performance
Ensures Accurate Results

• High performance membrane effectively holds back fibers from dried blood spots which can interfere with optical density readings
• New outlet tip geometry minimizes sample leakage and loss during incubation steps, decreasing the time required for sample retesting and second screens
• Optimized well design provides consistency in filtration times, ensuring reproducibility lot after lot
• New outlet tip design reduces the presence of hanging drops following filtration and minimizes sample cross-contamination
• CE marking meets requirements of European Union’s Council of Ministers In-vitro Diagnostics Directive.Ideal for use in clinical diagnosis applications globally.

• Screening of functional and genetic disorders on newborn babies
• Sample preparation for assays such as BIOT, GALT and TGAL

材料成分

• Filter Media：Supor® (polyethersulfone) membrane and glass fiber/Supor membrane
• Plate Housing:Polyproylene
• Lid:Polystyrene



尺寸

• Length:12.8 cm (5.0 in.)
• Width:8.6 cm (3.4 in.)
• Height With Lid:1.8 cm (0.7 in.)
• Height Without Lid:350 μL, 1.4 cm (0.6 in.)

Well-Bottom Area

• 0.25 cm²



Recommended Working Volume

• 350 μL: < 300 μL

Recommended Operating Vacuum

• > 25.4 cm Hg (10 in.Hg)



Recommended Centrifugal Force

• 1,500 x g



Typical Processing Time

• Vacuum:2 seconds
• Centrifuge:< 2 minutes



一般滞留量

Filter plate was filled with 300 μL of water and filtered at 10 in.Hg

• PN 8079 Vacuum:5 μL
• PN 8060 Vacuum:17 μL

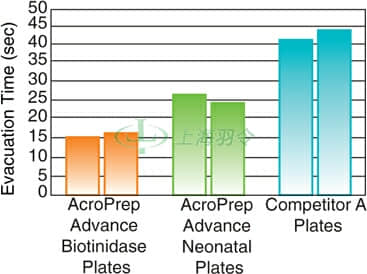

Efficient Filtration Times With Optimized Membrane Configurations



Evacuation times of different filter plates were tested for use in the SPOTCHECKBiotinidase Microplate assay (data performed in duplicate).Both AcroPrep Advance filter plates showed decreased processing times compared to Competitor A allowing for increased throughput, especially on automated instrument platforms.Data generated in conjunction with Astoria- Pacific International.

相关产品

• AcroPrep Advance Filter Plates for Multiplexing ensure assay reproducibility.
• AcroPrep Advance Filter Plates for Lysate Clearance provide efficient clarification of highly particulated samples.
• AcroPrep Advance Filter Plates for DNA Purification yield high quality DNA.
• AcroPrep Advance Filter Plates for Ultrafiltration typically result in > 90% recovery of target biomolecules.
• AcroPrep Advance Filter Plates for Solvent Filtration provide compatibility with harsh organics.
• AcroPrep 384-well Filter Plates for superior performance in high throughput sample preparation applications.
• Centrifugal Devices concentrate and purify samples of < 50 μL to 60 mL with efficient recovery and low non-specific binding.
• Vacuum Manifold fits AcroWell and AcroPrep filter plates tightly for vacuum filtration.

Part Number	描述	Pkg	Price	Qty
用于新生儿疾病筛查的 AcroPrep Advance 滤板
8060	For biotinidase assays	10/pkg	Call
8079	For neonatal screening	10/pkg	Call
配件及替换部件
5017	Multi-well plate manifold	1/pkg	Call
5225	Adapter collar for centrifugation	2/pkg	Call
5230	Cap mat for incubation	5/pkg	Call
8001	AcroPrep Advance multi-well plate lids	10/pkg	Call
