pall,颇尔,用于 DNA 提纯的 AcroPrep Advance 孔板,8032, 8132

Maximum Yields of High Quality DNA

• Optimized for maximum binding yield of DNA from a variety of sample types
• New well geometry results in reduced hold-up volume and higher recovery of DNA
• New outlet tip geometry provides direct flow of samples into receiver plate without concerns of crosscontamination
• Enhanced membrane ensures high yields of contaminant-free DNA for downstream applications
• Manufactured in accordance with SBS guidelines, allowing entire DNA purification process to be performed on automated equipment

• Plasmid DNA purification
• Genomic DNA purification

材料成分

• Filter Media：DNA binding (borosilicate glass without binder) media
• Plate Housing:Polyproylene
• Lid:Polystyrene

尺寸

• Length:12.8 cm (5.0 in.)
• Width:8.6 cm (3.4 in.)
• Height With Lid:1.8 cm (0.7 in.) (350 μL only)
• Height Without Lid:350 μL, 1.4 cm (0.6 in.);1 mL:3.3 cm (1.3 in.)

Well-Bottom Area

• 0.25 cm2

Recommended Working Volume

• 350 μL: < 300 μL
• 1 mL: < 900 μL

Recommended Operating Vacuum

• > 25.4 cm Hg (10 in.Hg)

Recommended Centrifugal Force

• 1,500 x g

Typical Processing Time

• Vacuum:2 seconds
• Centrifuge:< 2 minutes

一般滞留量

• Optimized for maximum binding Vacuum:19 μL

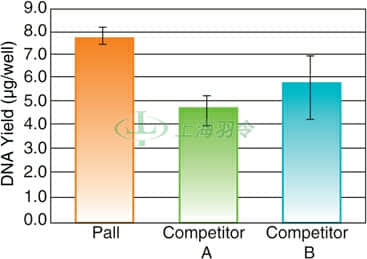

Plasmid DNA Yield Superior to Competitive Plates

pCAT plasmid DNA yield (OD260) using indicated DNA purification plates starting with 1 mL (颇尔 and Competitor B) or 1.5 mL (Competitor A) overnight culture DH5α.Purification using plate manufacturer’s recommended protocol using 350 μL plates.Error bars indicate standard error (n > 6).

Quality DNA Consistently Purified

OD_260/280 of pooled purified pDNA (n > 6).High quality DNA has an OD260/280 value between 1.7-2.0.
