pall,颇尔,用于多点检测的AcroPrep 96孔板,8019, 8029, 8049, 8027

Superior Bead Recovery and Low Levels of
False Positives Ensure Assay Reproducibility

• Smooth well wall provides efficient bead recovery, ensuring reproducible results lot after lot
• High performance membrane does not trap microspheres in the membrane matrix
• In serological assays, Supor® membrane effectively removes IgG complexes, thus reducing nonspecific reactivity of the microspheres and reducing false positives
• New well design results in faster, more uniform filtration rates across the plate with reduced hold-up volume
• New outlet tip geometry minimizes sample leakage and loss during incubation steps so that acquisition times are not affected
• Intrinsic plate and membrane properties minimize target loss from non-specific binding

• Bead-based multiplexing assays
• 流式细胞术

材料成分

• Filter Media：PP/PE non-woven (polypropylene/polyethylene) and Supor (polyethersulfone) membrane
• Plate Housing:Polyproylene
• Lid:Polystyrene

尺寸

• Length:12.8 cm (5.0 in.)
• Width:8.6 cm (3.4 in.)
• Height With Lid:1.8 cm (0.7 in.)
• Height Without Lid:350 μL, 1.4 cm (0.6 in.)

Well-Bottom Area

• 0.25 cm²

Recommended Working Volume

• 350 μL: < 300 μL

Recommended Operating Vacuum

• > 25.4 cm Hg (10 in.Hg)

Recommended Centrifugal Force

• 1,500 x g

Typical Processing Time

• Vacuum:2 seconds
• Centrifuge:< 2 minutes

一般滞留量

• Vacuum:5 μL
• Centrifuge:3 μL

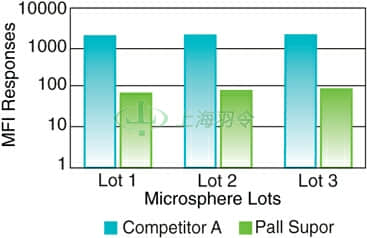

颇尔 Supor Membrane Reduces the Occurrence of False Positive Results

The serological immunoassays were performed with multiple lots of xMAP microspheres in both the 颇尔 Supor and Competitor M filter plates.The results from these filter plates were read with one Luminex LX100 Instrument.The responses represent the reactivity toward microspheres without proteins coupled to them to maximize the indications of false positive “non-specific” reactivity by the microspheres.In all lots of microspheres tested, the 颇尔 Supor filter plates exhibited a marked reduction in non-specific reactivity than competitive plates.Data generated in conjunction with Luminex Corporation.
