pall,颇尔,Mini Profile 囊式过滤器

Scaleable Depth Capsules for
Prefiltration and Clarification

• High capacity depth medium is absolute particle rated for reliability.
• Filter materials offer broad chemical compatibility.
• Optimized for viscous fluids.
• Mini Profile II filters have a thick depth structure, providing high capacity for larger solids and gels as well as for fine particles.
• Profile Star filters feature high area star-shaped pleated construction.The patented design combines the advantages of thick depth filters with those of traditional high area pleated filters.



• Designed for small-volume production and scale-up evaluation
• Can be used for the clarification of biological products
• Optimized for viscous fluids
• Excellent for gel removal

材料成分

• Filter Media, Core/End Caps, and Housing:聚丙烯
• 13 mm Single Hose Barb Adapter:Acetal



Absolute Removal Ratings (Liquid)

• 99.98% by modified OSU-F2 Beta test.



有效过滤面积

• Profile II Filter:46 cm² (7.1 in.²)
• Profile Star Filter:90 cm² (14.5 in.²)



Inlet/Outlet Connections

• 13 mm (9/16 in.) hose barb



Maximum Operating Temperature and Pressure

(In compatible fluids that do not adversely affect the filter or materials of construction.)

• Profile II Filter:
    30 °C (86 °F) at 4.1 bar (410 kPa, 60 psi)
    50 °C (122 °F) at 3.4 bar (340 kPa, 50 psi)
• Profile Star Filter:50 °C (122 ºF) at 5.0 bar (500 kPa, 75 psi)



Sterilization

• Provided non-sterile
• Can be autoclaved up to 3 times to 125 ºC (257 ºF) for 30 minutes

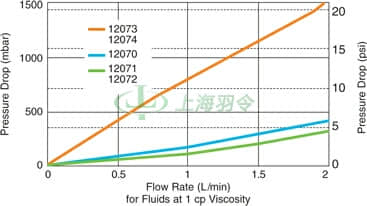

Typical Water Flow Rate

Part Number	描述	Pkg	Price	Qty
Mini Profile 囊式过滤器
12073	Profile II filter, 0.5 µm	3/pkg	Call
12074	Profile II filter, 1 µm	3/pkg	Call
12070	Profile Star filter, 1.5 µm	3/pkg	Call
12071	Profile Star filter, 3 µm	3/pkg	Call
12072	Profile Star filter, 5 µm	3/pkg	Call
