Rapid, High Capacity Protein Purification
in a User-Friendly Format

• Patented Ceramic HyperD® ion exchange chromatography sorbent features “gel-in-a-shell” technology, providing rapid protein purification with high capacity and good resolution.
• Rapid and efficient.Obtains high speed runs (1 - 4 mL/min) with very little loss in binding capacity and resolution, allowing more samples to be processed per day.
• Higher resolution for 1 mL columns.Columns provide distinct separation of proteins for better purification.
• Luer lock inlet and outlet allows convenient use with syringe, pump, or automated chromatography system.
• User-friendly column design is colorcoded and labeled by chemistry type.层析柱采用六边形轴环，可避免意外滚落实验台。

• Screen multiple IEX chemistries for use in protein purification
• Ideal for optimization studies of protein purification schemes using small sample volumes prior to scale-up
• Efficient and reliable small scale purification of proteins for structural, functional, and yield analysis

材料成分

• Column Housing, Cap, Plug, and Adapter:聚丙烯
• Column Frit:聚乙烯



介质	功能和作用	Color Code	Average Particle Size	Working pH	Ion Exchange Capacity1
CM Ceramic HyperD F	Weak cation exchanger	绿色	50 微米	2 - 12	> 60 mg/mL2
DEAE Ceramic HyperD F	Weak anion exchanger	橙色	50 微米	2 - 12	> 85 mg/mL3
Q 陶瓷 HyperD F	Strong anion exchanger	红色	50 微米	2 - 12	> 85 mg/mL3
S Ceramic HyperD F	Strong cation exchanger	天蓝色	50 微米	2 - 12	> 75 mg/mL4



Column Geometry

• Column Volume:1.04 毫升
• Bed Height:1.48 cm (0.58 in.)
• Bed Diameter:0.94 cm (0.37 in.)



Device Dimensions

• 直径：1.6 cm (0.6 in.)
• Length (Without Plugs):4.8 cm (1.9 in.)



Connections

• Inlet:Threaded female luer lock
• Outlet:Rotating male luer locking hub



Recommended Flow Rates

• 1 - 4 mL/min



Back Pressure

• Maximum:3 bar (300 kPa, 43.5 psi)



存储

• 2-30 ºC (36-86 ºF)
• 2-8 ºC (36-46 ºF) after opening



¹Dynamic binding capacity (DBC) determined at 10% breakthrough, 200 cm/hr. with 1.66 mL sorbent packed in a column of 5 mm ID and 100 mm height using the following:
²5 mg/mL human IgG in 50 mM sodium acetate buffer, 100 mM NaCl, pH 4.7
³5 mg/mL BSA in 50 mM Tris-HCl buffer, pH 8.6
⁴5 mg/mL lysozyme in 50 mM sodium acetate buffer, pH 4.5

Resolution Comparison of AcroSep™ Columns With Q HyperD® F and Competitive Q at Flow Rate of 1 mL/min



Resolution was calculated using default algorithm on AKTA^♦ chromatography system.



The chromatogram above is an illustration of resolution between BSA and Conalbumin using three replicates of 颇尔's AcroSep Q column and a competitive Q column.This separation was run at 1 mL/min.Resolution of the AcroSep columns is clearly illustrated in this chromatogram.The competitive column is represented by the green line.

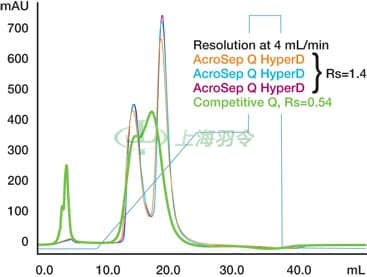

Resolution Comparison of AcroSep Columns With Q HyperD F and Competitive Q at Flow Rate of 4 mL/min



The above chromatogram is an illustration of the resolution of the AcroSep Q column and the competitive column when the flow rate is elevated to 4 mL/min.It demonstrates that at 4 mL/min there is little, if any, change in protein separation on the AcroSep column, while the competitor performance degrades significantly with increased flow rate.

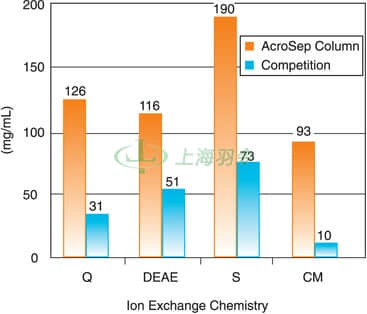

1 mL AcroSep Column Average Dynamic Binding Capacity at High Flow Rate (10% Breakthrough)



The above illustrates dynamic binding capacity for each of our four ion exchange chemistries when run at 3.56 mL/min.Data shows higher dynamic binding capacities of 颇尔 AcroSep columns over competitive columns at higher flow rates.Each average is derived from three replicates of > 8 AcroSep columns or three replicates of two competitive columns.The proteins were at a concentration of 5 mg/mL and the choices were BSA for Q and DEAE, Lysozyme for S, and IgG for CM.

使用说明：AcroSep 离子交换层析柱

• Ceramic HyperD Ion Exchange Chromatography Sorbents (Q, S, DEAE, and CM)

Part Number	描述	Pkg	Price	Qty
AcroSep 离子交换层析柱
20050-C001	CM Ceramic HyperD F, 1 mL, Green	5/pkg	Call
20062-C001	S Ceramic HyperD F, 1 mL, Blue	5/pkg	Call
20066-C001	Q Ceramic HyperD F, 1 mL, Red	5/pkg	Call
20067-C001	DEAE Ceramic HyperD F, 1 mL, Orange	5/pkg	Call
IEXVP-C001	(1) each:Q, S, CM, and DEAE Ceramic HyperD F, 1 mL	4/pkg	Call
