High Flow Rate Membrane Optimized for Biological, Pharmaceutical, and Sterilizing Filtration Requirements

• Fast filtration with superior flow rates and high throughputs
• Low protein binding and extensive drug compatibility for critical applications
• Saves time and money with fewer filter changes per sample volume
• 142 and 293 mm discs feature printed tab for instant recognition of pore size and lot number
• May be sterilized by gamma irradiation, EtO, or autoclaving

• Suited for biological, pharmaceutical, and sterilizing filtration requirements
• Available for microbiological analysis in individual sterile packaging

过滤介质

• 亲水性聚醚砜 (PES)

孔径

• 0.1, 0.2, 0.45, and 0.8 μm

Diameter

• 13 - 293 mm

Typical Thickness

• 0.1 μm:132 μm (5.2 mils)
• 0.2 μm:145 μm (5.7 mils)
• 0.45 and 0.8 μm:140 μm (5.5 mils)

Typical Water Flow Rate

• mL/min/cm2 at 0.7 bar (70 kPa, 10 psi)
    0.1 μm:5
    0.2 μm:26
    0.45 μm:58
    0.8 μm:165

Maximum Operating Temperature - Water

• 100 °C (212 °F)

Extractables - Soxhlet Extraction

• < 4%

Minimum Bubble Point - Water

• 0.2 μm:3.5 bar (350 kPa, 51 psi)
• 0.45 μm:2.5 bar (250 kPa, 36 psi)
• 0.8 μm:1.0 bar (100 kPa, 15 psi)

60% IPA/40% H2O (v:v)

• 0.1 μm:2.4 bar (240 kPa, 35 psi)

Biological Safety

• Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Sterilization

• Provided non-sterile.Can be sterilized by autoclaving at 121 - 123 °C (250 - 253 °F) for 30 min.PN 63025, 60043, 65472, 5010, and 66234 are provided gamma-irradiated.

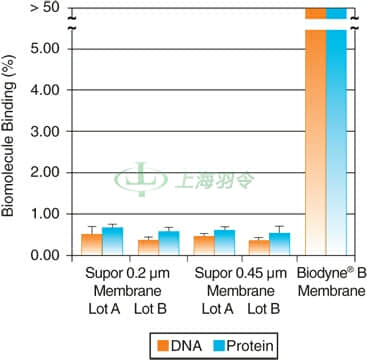

Supor Membrane is Low in Biomolecule Binding

¹²⁵I-labeled BSA (1.6 µg) or ³²P-labeled DNA (500 ng) was diluted to 5 mL in PBS (BSA) or Tris-EDTA (DNA) and filtered through a 13 mm disc of the indicated membrane.Filtration was carried out using a 10 mL syringe at a flow rate of 1.0 mL/minute.Binding was determined by comparing the amount of radioactivity remaining in the membrane (triplicate) to the activity of the starting material by counting the disc or solution in a scintillation counter.Biodyne® B membrane is designed for biomolecule binding and was used as a positive control.

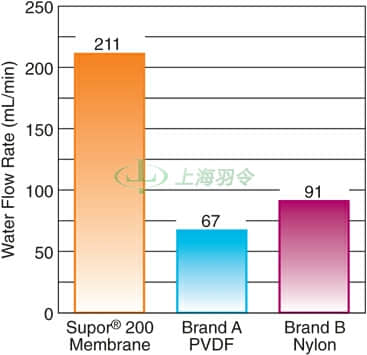

Membrane Water Flow Rate

Supor polyethersulfone membrane flow rate outperforms nylon and PVDF membranes of the same pore size (0.2µm).
